Direct Sequence Spreading Spectrum (DSSS) modulation |
 |
Crystal clear stereo CD quality with uncompressed technology |
 |
Very short delay time < 2ms |
 |
Up to 100m line of sight distance (depending on antenna type and transmitting output power) |
 |
Operate on 2.4GHz unlicensed ISM band |
 |
Support RF channel auto scan and synchronization |
 |
Support antenna diversity receiving |
 |
Support 16bit, 44.1KHz digital audio transmission over the air |
 |
Support multi-level mute function |
 |
Support auto power down function after 5 minutes of no audio input (adjustable) |
 |
Support 7bit manufacture ID (available on request) |
 |
Support 24bit user ID |
 |
Support User ID learning function |
 |
Broadcast to unlimited receivers by same User ID |
 |
Receiver support 128 steps volume control function |
 |

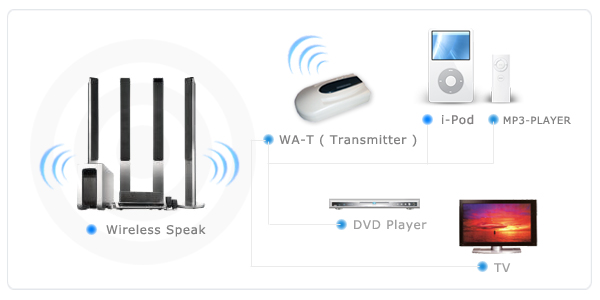

Receiver is compatible to multiple transmitter sources, such as analog, S/PDIF and USB |
 |
Sleeping Mode |
 |
RF channel auto scan and synchronization |
 |
Multiple Audio Interface : I2S, S/PIF, USB, Analog |
|
|
|
|
 |
|
|
 |
 |
|
 |
Power supply voltage range : 3.6 ~ 5VDC |
 |
Power Consumption : 350mA |
 |
Compatible with Win98 SE / Win ME / Win 2000 / Win XP without additiond driver |
 |
Compliant with USB audio device class specification v1.0 |
|
|
 |
 |
